How undercounter ice maker installation reshapes your cabinet plans
Most buyers focus on stainless steel doors and nugget ice, yet undercounter ice maker installation is really decided by what hides behind the cabinet. Your chosen ice maker machine will only perform as promised if the cabinet bay can host three permanent connections, and those connections shape everything from layout to long term service access. Before you fall for a sleek built in ice front, you need to map water, drain and electrical with the same care you give your spirits collection.
Every undercounter ice maker unit needs a dedicated cold water supply, a reliable drain path and a 120 volt electrical circuit that does not share with dishwashers or espresso machines. The typical ice machine pulls around 4 to 5 amps during steady ice production, but the compressor and pump can spike higher at cycle start, so a proper circuit protects both the makers and the rest of your bar. Most manufacturers of residential 15 inch undercounter units recommend a 15 amp breaker and a properly grounded receptacle; always confirm the exact rating on the data plate or in the installation manual. When you plan the installation, ensure the counter opening, the back wall and the floor all allow safe routing for the water pipe, the drain line and the electrical cable without tight bends.
Think of the cabinet bay as a small commercial ice alcove, where airflow, moisture and power all interact in a tight space. A well planned maker installation will keep the undercounter ice maker running quietly, while a rushed install job often leads to noisy vibration, warm ice makers and even melted ice in the bin. Treat the space like a compact counter ice station, and you will avoid the expensive surprise of moving plumbing after the unit arrives.
Plumbing essentials: water supply, copper tubing and drain strategy
The heart of any undercounter ice maker installation is the cold water line, because no water means no ice production and a very quiet but useless machine. For most home bars, the cleanest approach is to tee off an existing water source under a nearby sink, then run copper tubing or high quality braided hose to the back of the ice maker unit. If you choose copper, use 1/4 inch (about 6 millimetres) tubing with a compression fitting at the machine end, and secure the pipe so it cannot kink when you slide the cabinet appliance under the counter.
Many older guides still mention the saddle valve, a clamp on fitting that pierces an existing pipe to create a small water supply tap. I strongly recommend avoiding saddle valves for any modern ice maker installation, because they clog easily, restrict flow and often leak after a few years of vibration and thermal cycling. A professional plumber will instead cut the line and install a proper tee with a full bore valve, which gives your ice makers the steady cold water pressure they need for consistent ice production. In many jurisdictions, plumbing codes now discourage or prohibit self piercing valves for new work, so a full port ball valve with a 1/4 inch outlet is the safer, code friendly choice.

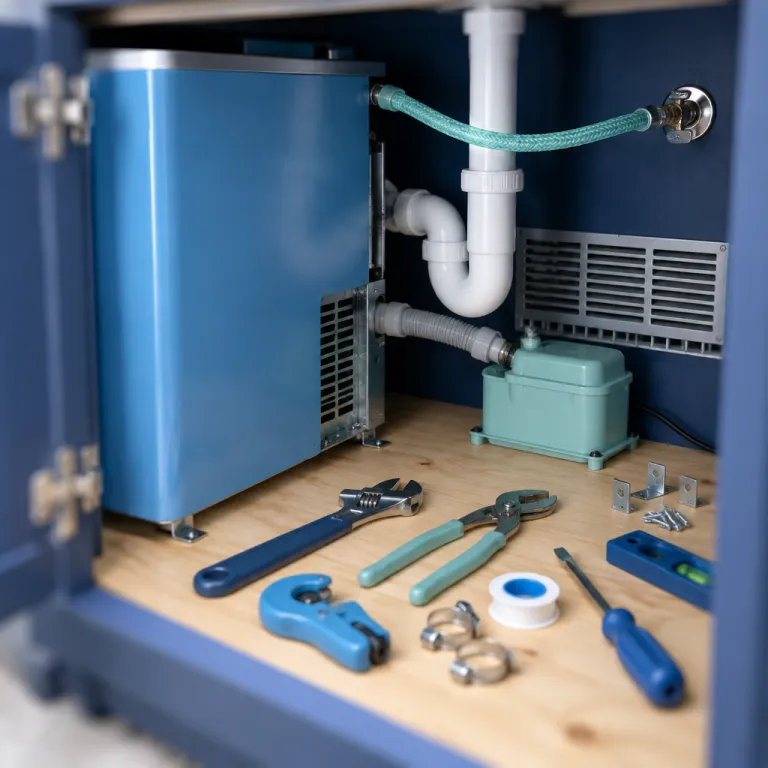

Drain planning is where most home bar projects stall, because gravity drain lines demand that the undercounter ice cabinet floor sits higher than the household drain connection. If your drain stub out is too high, you will need a small pump inside or behind the ice machine, which adds cost but frees you to place the unit almost anywhere along the counter run. Before you order, measure from the finished floor to the existing drain, then compare that to the manufacturer’s maximum gravity drain height specification in a detailed buying guide for undercounter models. As a rule of thumb, many residential undercounter ice makers expect the gravity drain inlet to sit no more than about 2 to 4 inches (50 to 100 millimetres) above the floor, but the official installation instructions always take priority.
Ventilation, cabinet sizing and the reality of tight spaces
Once water and drain are mapped, ventilation becomes the silent killer or saviour of your undercounter ice maker installation. Most modern ice makers use front venting through a grille at the toe kick, yet they still rely on a small air gap at the back and sides of the unit to move warm air away from the compressor. Block that flow with insulation, stored bottles or a tight cabinet wall, and you turn a commercial grade ice machine into a hot box that will fail early. Manufacturer installation diagrams usually call for at least a few millimetres of clearance at the sides and rear plus a fully open front grille, so treat those numbers as minimums rather than targets.
Cabinet sizing sounds simple, but real world testing shows that a nominal 15 inch (about 38 centimetres) wide opening for a 15 inch unit often shrinks once you add panels and door hardware. Measure the rough opening at three heights, then compare it to the ice maker machine dimensions, allowing at least 1/4 to 3/8 inch (6 to 10 millimetres) on each side for slide in clearance and for the power, water and drain lines to pass without crushing. Depth matters just as much, because most undercounter ice units need around 24 inches (roughly 60 centimetres) to sit flush with the counter while still leaving space for the pipe work and electrical cord behind. A simple dimension checklist taped inside the cabinet—width, depth, height, drain height, and outlet location—helps you verify everything at a glance before the delivery truck arrives.
Door swing is another overlooked detail that can ruin an otherwise perfect maker installation, especially when the bar layout includes a corner cabinet or a nearby fridge. Decide whether you need a left or right hinge before you order, and check that the open door will clear adjacent handles and walls without blocking traffic. If you are comparing built in and freestanding designs, a focused article on the benefits of built in ice makers can help you match the unit style to your cabinet constraints, but the final decision should always follow the manufacturer’s clearance diagram for the specific model you plan to install.
Power, outdoor installations and when to call a professional
Electrical planning for undercounter ice maker installation rarely gets the attention it deserves, yet a stable power supply is as critical as clean water. Most residential undercounter ice machines run on a standard 120 volt, 60 hertz circuit, drawing 4 to 5 amps during normal ice production but spiking higher when the compressor and pump start. For that reason, I advise a dedicated 15 amp circuit for each ice maker unit, especially if you already have a commercial espresso machine or wine fridge on the same counter run. Local electrical codes may require AFCI or GFCI protection in bar areas, so confirm requirements with a licensed electrician or your authority having jurisdiction before you pull cable.
Outdoor undercounter ice setups raise the stakes, because moisture, temperature swings and corrosion all attack the machine, the wiring and the plumbing. Any outdoor ice maker must carry a proper outdoor or weather resistant rating, sit on a GFCI protected circuit and connect to a water supply with a weather sealed shut off valve that you can reach quickly. The cabinet or masonry enclosure should allow generous ventilation around the stainless steel body, and the drain line must slope correctly so that residual water does not freeze and crack the pipe during cold nights. In cold climates, plan a winterisation routine that includes shutting off and draining the water line, pumping out the drain and following the manufacturer’s seasonal storage instructions.
Many confident homeowners can install ice lines and even a simple gravity drain, especially when the water source is close and the floor is accessible from below. Running a new electrical circuit, however, is almost always a job for a licensed professional, because a mistake here can damage the ice makers, trip breakers or even create a fire risk. When in doubt, budget for a professional plumber and an electrician, then treat that cost as part of the total price of owning a reliable undercounter ice machine rather than as an optional extra. If you encounter repeated breaker trips, warm ice, slow production or water backing up into the bin after installation, stop using the unit and have a qualified technician verify the wiring, drainage slope and ventilation against the manufacturer’s specifications.
Pre purchase cabinet checklist and real world testing insights
Before you click buy on any undercounter ice maker installation, walk through a structured checklist for the cabinet bay that will host the unit. Start with dimensions, confirming width, height and depth, then verify that the floor is level and strong enough to support a fully loaded ice machine with a bin full of ice. Next, trace the path for the water pipe, the drain hose and the electrical cord, making sure each can reach without sharp bends or pinch points behind the counter. Note the exact height of the drain stub out and the distance to the nearest cold water line and electrical outlet so you can compare them directly to the installation diagram in the product manual.
Distance to plumbing matters more than most buyers expect, because every extra metre of copper tubing or hose adds friction loss and potential leak points. Keep the water supply run as short and direct as possible, and always include a shut off valve in an accessible location so you can turn water off quickly during maintenance or if the ice makers ever leak. For the drain, confirm that gravity will work with your floor height, and if not, factor in the cost and noise of a small pump before you finalise the maker installation plan. A basic troubleshooting rule is that standing water in the bin or slow draining usually points to an undersized or poorly sloped drain, while reduced ice output with a hot cabinet often signals blocked ventilation or a shared, overloaded circuit.
Real world testing in busy home bars shows that units with easy service access and clear ventilation paths maintain commercial ice level performance far longer than cramped installs. When I compare different ice makers, I always run them for several days in a closed cabinet, monitoring ice production, bin temperature and compressor cycling to see how they handle restricted airflow. If you want a portable reference for ice performance while you plan your undercounter layout, a compact countertop model can help you understand how different machines behave under varying water and room conditions. Use that informal testing to refine your cabinet checklist: if a small countertop unit struggles in a tight, hot corner, a built in undercounter ice maker will be even less forgiving of poor ventilation and marginal power.
FAQ
What plumbing connections are mandatory for an undercounter ice maker installation ?
Every undercounter ice maker needs three permanent connections : a cold water supply line, a drain and an electrical circuit. The water source usually comes from a nearby sink line, connected with 1/4 inch copper tubing or braided hose and a proper shut off valve. The drain can be gravity fed if the household drain is low enough, or pump assisted if the cabinet floor sits below the drain height. Always compare your site measurements to the manufacturer’s specified maximum gravity drain height before committing to a pump free layout.
Can I install an undercounter ice maker without hiring a professional plumber ?
A confident homeowner can often handle the water and drain work, especially when the cabinet is close to existing plumbing and the floor is accessible. You must still follow local codes, use proper fittings instead of a saddle valve and pressure test the lines before pushing the unit under the counter. If you are unsure about cutting into pipes or routing a new drain, hiring a professional plumber is usually cheaper than repairing water damage later. Many manufacturers also tie warranty coverage to proof of code compliant installation, so professional work can protect both your home and your investment.
How much ventilation space does an undercounter ice machine really need ?
Most front venting undercounter ice machines are designed to sit nearly flush with cabinetry, but they still require a small air gap at the sides and rear. Manufacturers typically specify at least a few millimetres clearance, plus an unobstructed front grille so the unit can exhaust warm air. Blocking that grille with toe kick trim or storage is one of the fastest ways to overheat the compressor and shorten the life of the ice maker. If the cabinet feels hot to the touch or the fan runs constantly, treat that as a troubleshooting cue to check for blocked vents or inadequate clearances.
Is a gravity drain or a pump drain better for home bar installations ?
Gravity drains are simpler, quieter and cheaper, but they only work when the cabinet floor is higher than the household drain connection. Pump drains add cost and a little noise, yet they allow you to place the undercounter ice maker almost anywhere along the counter run. For many remodels where the drain stub out is fixed, a small pump is the only practical way to achieve reliable drainage without opening walls or floors. When comparing options, look for a pump rated for continuous duty with a capacity that meets or exceeds the ice maker’s maximum meltwater output.
What electrical requirements should I check before ordering an undercounter ice maker ?
Most residential undercounter ice makers run on a standard 120 volt circuit and draw around 4 to 5 amps during normal operation. Because of startup spikes and the risk of nuisance tripping, a dedicated 15 amp breaker is strongly recommended, especially in a bar where other appliances already share power. Before ordering, confirm that your panel has capacity for a new breaker and that the route for the cable to the cabinet bay is feasible without major demolition. Local electrical codes and the installation manual are the final authorities, so have a licensed electrician review your plan if you are unsure about conductor size, breaker type or GFCI/AFCI requirements.
